Decades of craft precipitation, ever lasting optimization and improvement, S-conning developed this versatile S322 widely be applied to Flat Square Round Bottle and stable containers in the pharmaceutical, food and beverages, and daily chemical industries.
S-conning unique advanced automatic detection will effectively prevent the bottle inverted, stickers missing, stick wrong, re-posted and other issues. Minimize the printing mistake.
Sending & collecting device with optional distribution (collecting ) trays very adaptable connect with production line, this full automatic packing machine ensuring you the flexibility, generality, compatibility
We only adopt the most profession and stable electrical component, ensuring you the flexibility, generality, compatibility
Optional Printing equipment is flexible matching with thermal transfer printer、hot printing machine or ink-jet printer, print and apply automatic labeler integration.

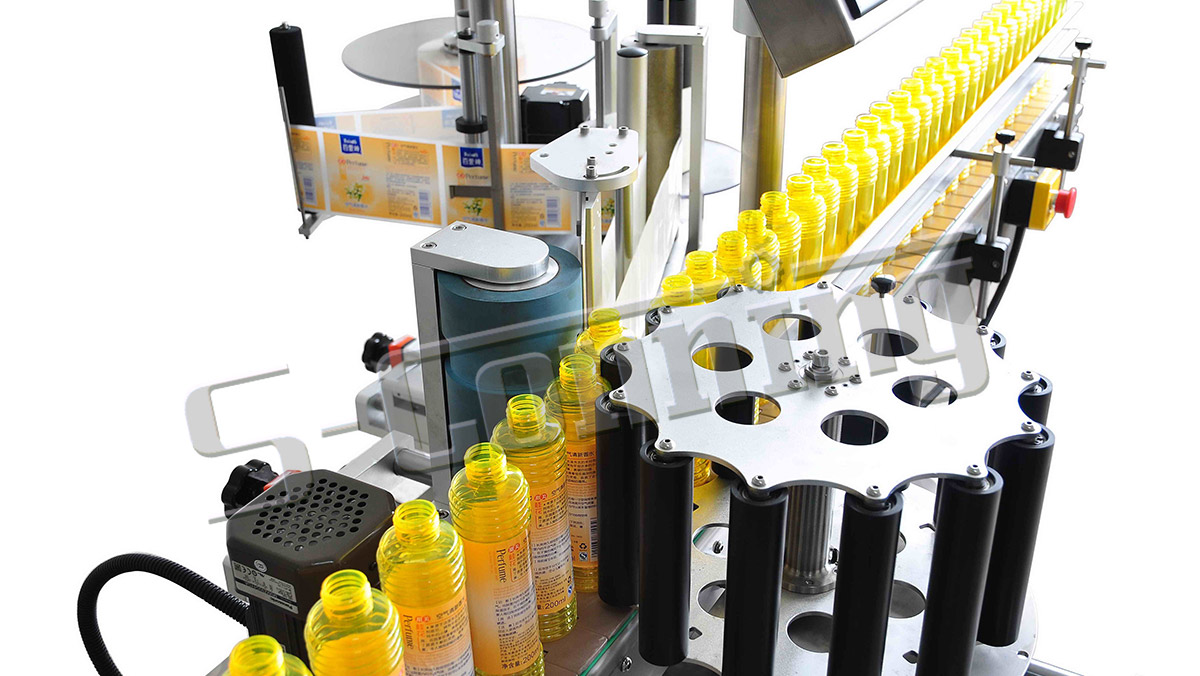

The Star wheel positioning design for Cylindrical-shaped positioning and clamping, sophisticated design three points roller positioning round bottle labeling machine ensure labeling precision, maximum the labeling precise location.
We also offer the visual detection : avoid leakage label,wrong label, repeat label, incline label and unclear printing code questions.

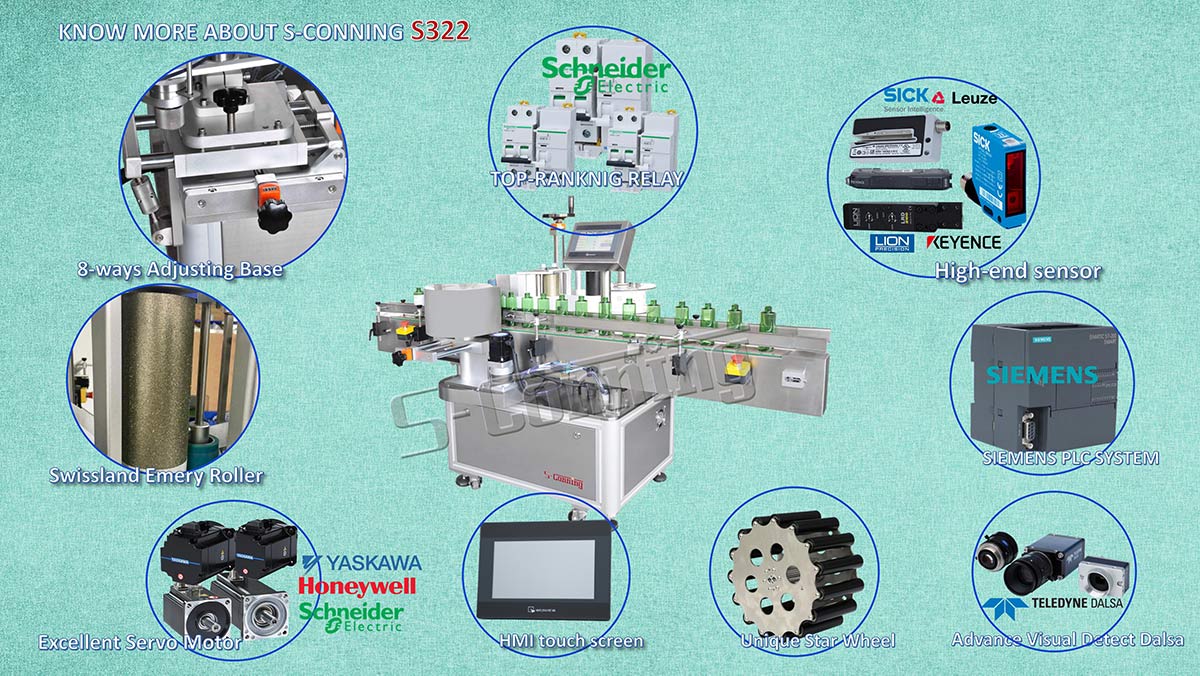

Our Advantages:

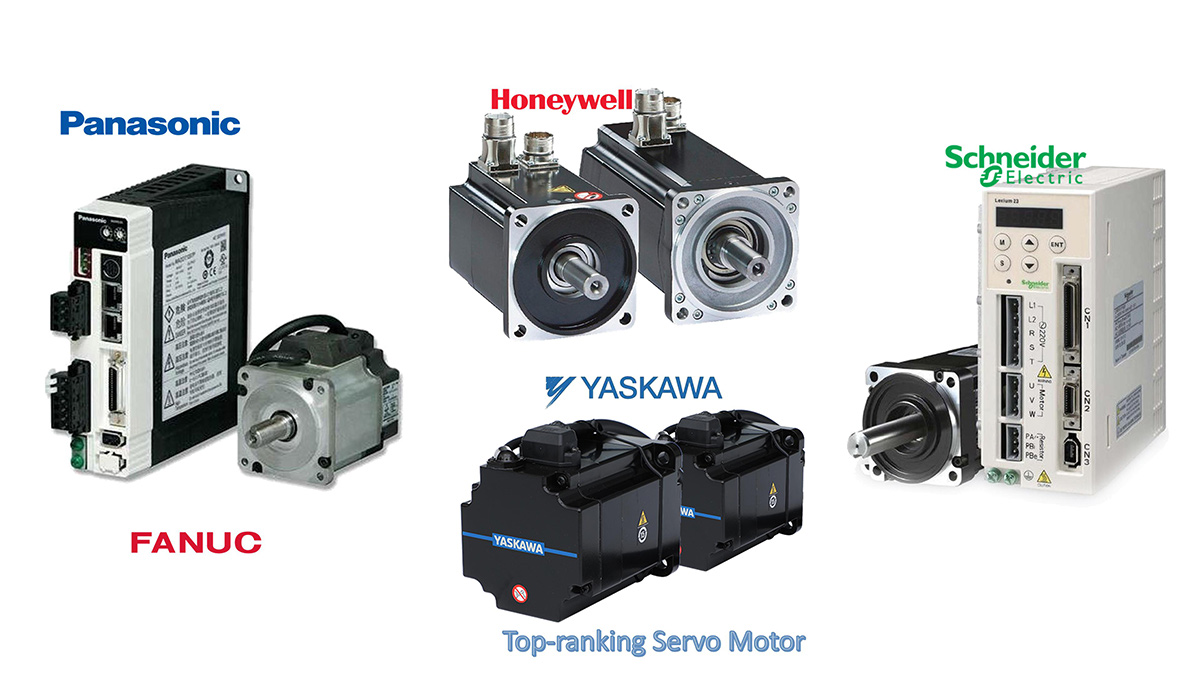

1) Label applicator be equipped with High quality servo motor.
2) Less bottle or inverted bottle detection sensor.
3) Premium Swiss Emery roller to help drive the label applicator.
4) High precision Star wheel three point positioning labeling.
5) Silicone holding label roller.
6) HMI touch screen.
7) All France and Germany brand electrical configuration.
8) GMP standard Aluminum alloy stainless steel cabinet.
9) Also be widely use for Flat Bottle Labeling Machine.
Specifications:
| S/No. | Item | Parameters | Remark |
| 1 | Speed | Flat bottle≦200 botles/minute | Related to the Bottle size, Label Size and feed speed |
| 2 | Bottle Size | Flat bottleThickness: 20-90mm; Height≦300mm | |
| 3 | Labeling Accuracy | ±1.5mm | Not including error of the paste & label |
| 4 | Stop label Accuracy | ±0.3mm | |
| 5 | Conveyor speed | 5～40meters/minute | |
| 6 | Speed of label sending out | 3～50meters/minute | |
| 7 | Width of Conveyor belt | 91mm | |
| 8 | Label roll | inner diameter：76mm, outer diameter：350mm | |
| 9 | Power | 220V±5% 50/60Hz 1KW | |
| 10 | Direction | tight→left or left→right(Determine your direction when placing an order) | "Direction" refers to the direction of object flow when the worker is facing the operating interface |
| 11 | Machine Outer Size (mm) | About（L）3000mm × （W）1650mm × (H)1500mm | For reference only. Please confirm the size of the final plan |
